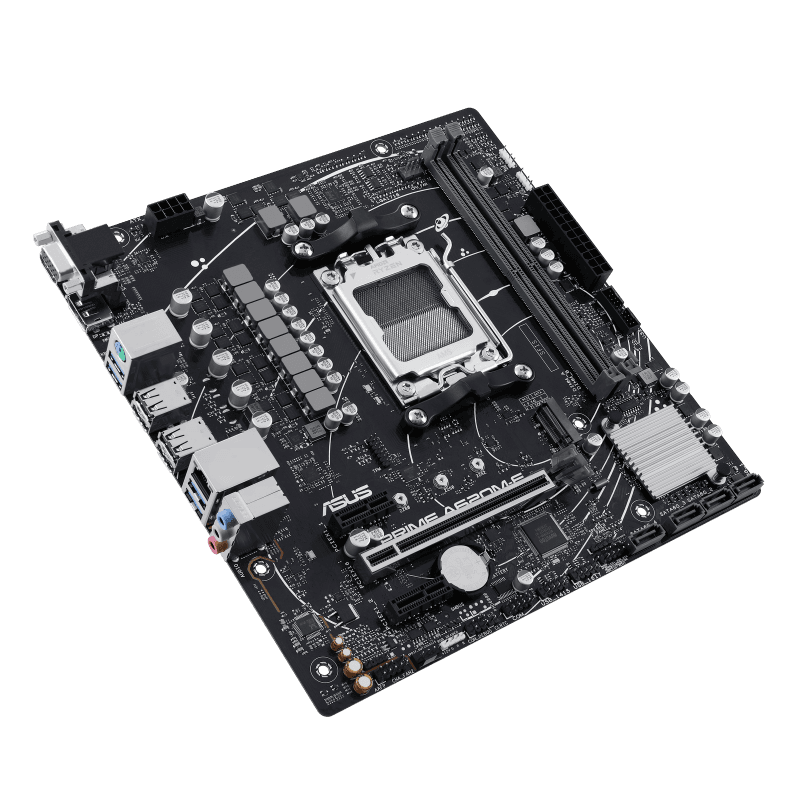

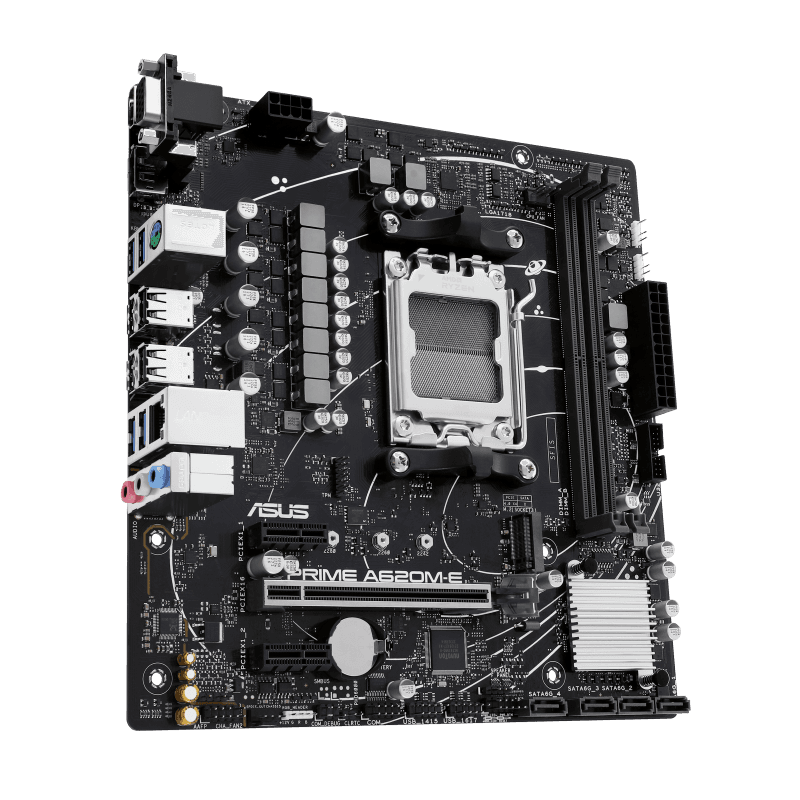

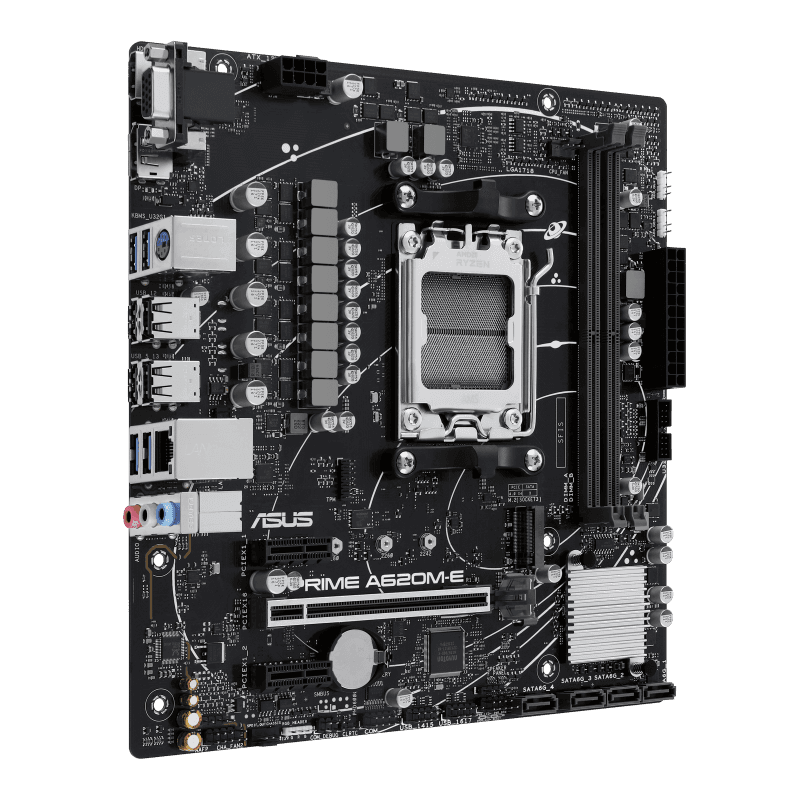

Mainboard PRIME A620M-E

Thương hiệu

ASUS

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
• Supports up to AMD 120W CPU
• * Refer to www.asus.com for CPU support list.

Chipset

AMD A620 Chipset

Memory

• 2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort**
• 1 x VGA port
• 1 x HDMI™ port***
• * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• AMD A620 Chipset
• 2 x PCIe 3.0 x1 slots
• * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• ** Specifications vary by CPU types.
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

• Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports*
• AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD A620 Chipset
• 4 x SATA 6Gb/s ports
• * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet

1 x Realtek 1Gb Ethernet

USB

• Rear USB (Total 8 ports)
• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 6 ports)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

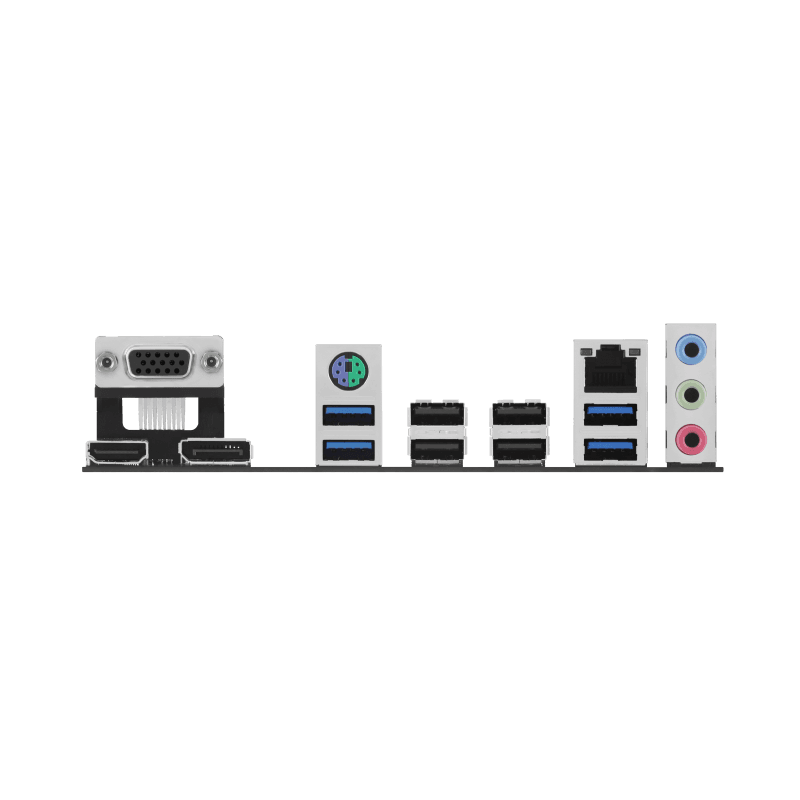

Back Panel I/O Ports

• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x VGA port
• 1 x HDMI™ port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 2 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

Special Features

• ASUS 5X PROTECTION III
• - DIGI+ VRM
• - LANGuard
• - Overvoltage Protection
• - SafeSlot Core+
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - Q-DIMM
• - Q-LED Core
• - Q-Slot
• ASUS Thermal Solution
• - Aluminum heatsink design
• Aura Sync
• - Aura RGB header
• - Addressable Gen 2 headers

Software Features

• ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• - Fan Xpert 2+
• - Power Saving
• - Two-Way AI Noise Cancellation
• AI Suite 3
• - TurboV EVO
• - DIGI+ VRM
• - PC Cleaner
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

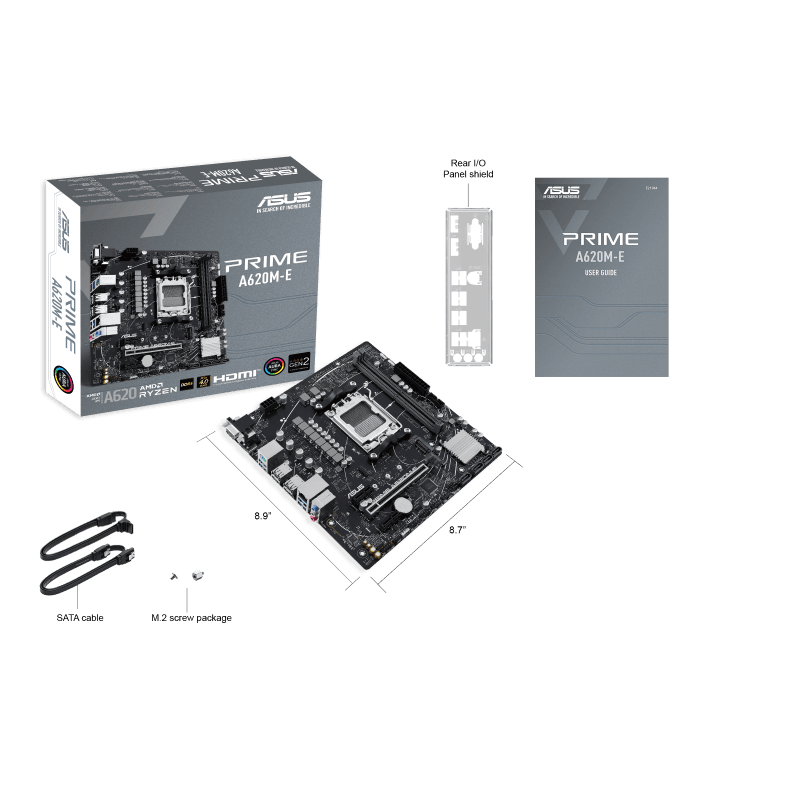

Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous

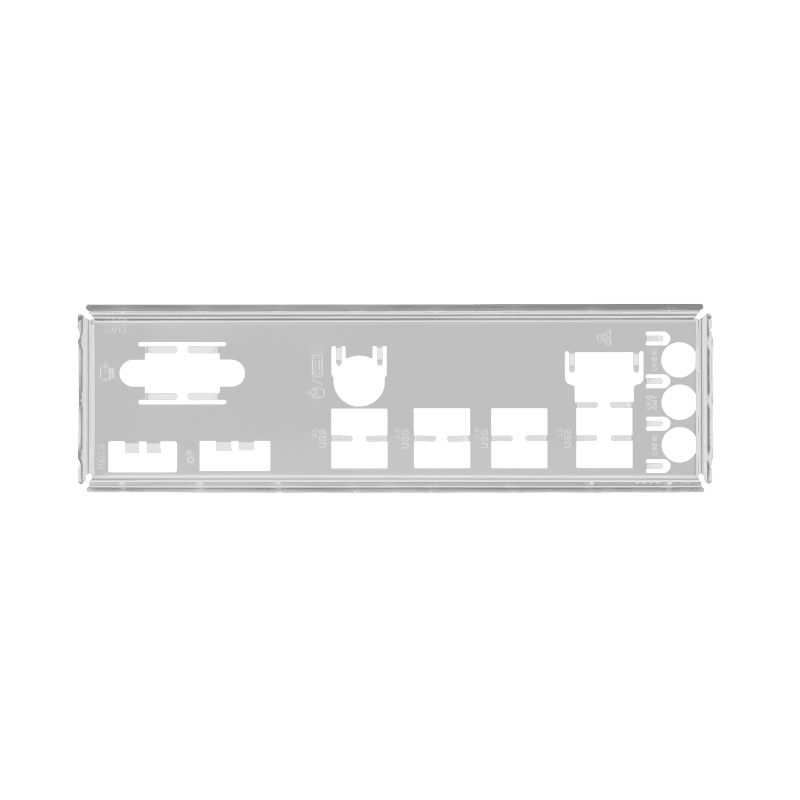

• 1 x I/O Shield
• 1 x Screw package for M.2 SSD
• Documentation
• 1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

• micro-ATX Form Factor
• 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
